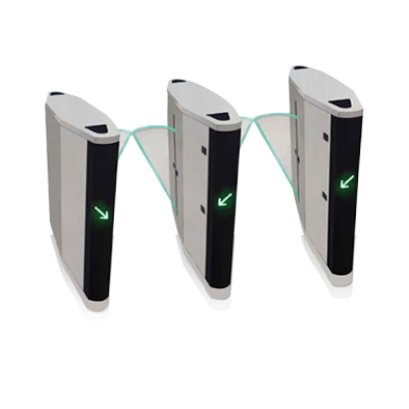

The SWB200 is the slenderest of all pedestrian gates. The thin design saves room and allows you to install more gates to handle more traffic.
The addition of more glass surfaces elevates the premium ambience of any building lobby. To achieve a faster pass-through rate, a high-speed advanced servo motor is used.
SWB200 provides a wide and full clearance aperture, allowing pedestrians with luggage to pass through with ease.
- Temperature : -15°C to 60°C
- Operating voltage: DC 24V
- Power supply input : 220V ± 10% AC, 50 / 60Hz
- Power consumption: 100 watt
- Humidity : 0 to 95%
- Optimal traffic rate: 20 to 30 people per min
- Motor type: Brushless DC servo motor
- Communication Interface : RS485 / RS232
- Working environment: Indoors
- Machinery mechanism: Lossless mechanism
- Control Input / Output : 6 channels relay control output/4 channel dry contact signal input
